Zero Liquid Discharge (ZLD)

ZERO Liquid Discharge

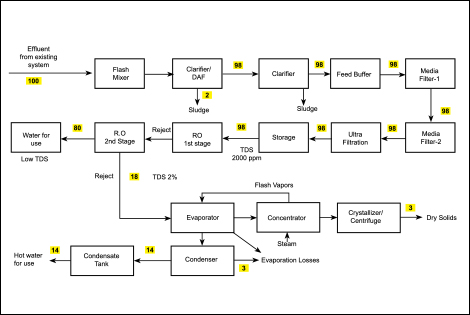

Zero liquid discharge (ZLD) is an engineering approach to wastewater treatment where all treated clean water is made available for reuse in ongoing industrial operations by remov-ing the impurities & amp; dissolved solids while the contam-inants therein are reduced to solid waste. In the case where RO membrane filtration is to be applied, a smaller volume (the reject) will require evaporation i.e. steam evaporator in general and Multieffect evaporator (MEE) in particular is one of main partner and popular method in completing the loop of wastewater treatment to achieve the ZLD. At GEPL, we adopt a project based approach with superi-or and cost effective engineering design capabilities and manufacturing excellence to deliver a total solution towards achieving ZLD.

At GEPL, we adopt a project based approach with superior and cost effective engineering design capabilities and manufacturing excellence to deliver a total solution towards achieving ZLD.

We provide turnkey solution for ZLD with primary treatment, secondary treatment, tertiary treatment, evaporation sys-tem and ATFD based on the type and characteristics of the effluent.

We design and manufacture the single and multiple effect evaporators with falling film evaporation and forced circu-lation crystallizer keeping in mind both sustainability and economy in operation

Feature

  1. Process design and development.
  2. Zero Liquid Discharge System which includes Stripper Column,
    Multi Effect Evaporator and Agitated Thin Film Dryer.
  3. Distillation Column for solvent recovery.
  4. Agitated thin film dryer for drying of product with LOD less than 5%.
  5. Evaporator for concentration of product.

Cost effective solutions to water and wastewater issues
